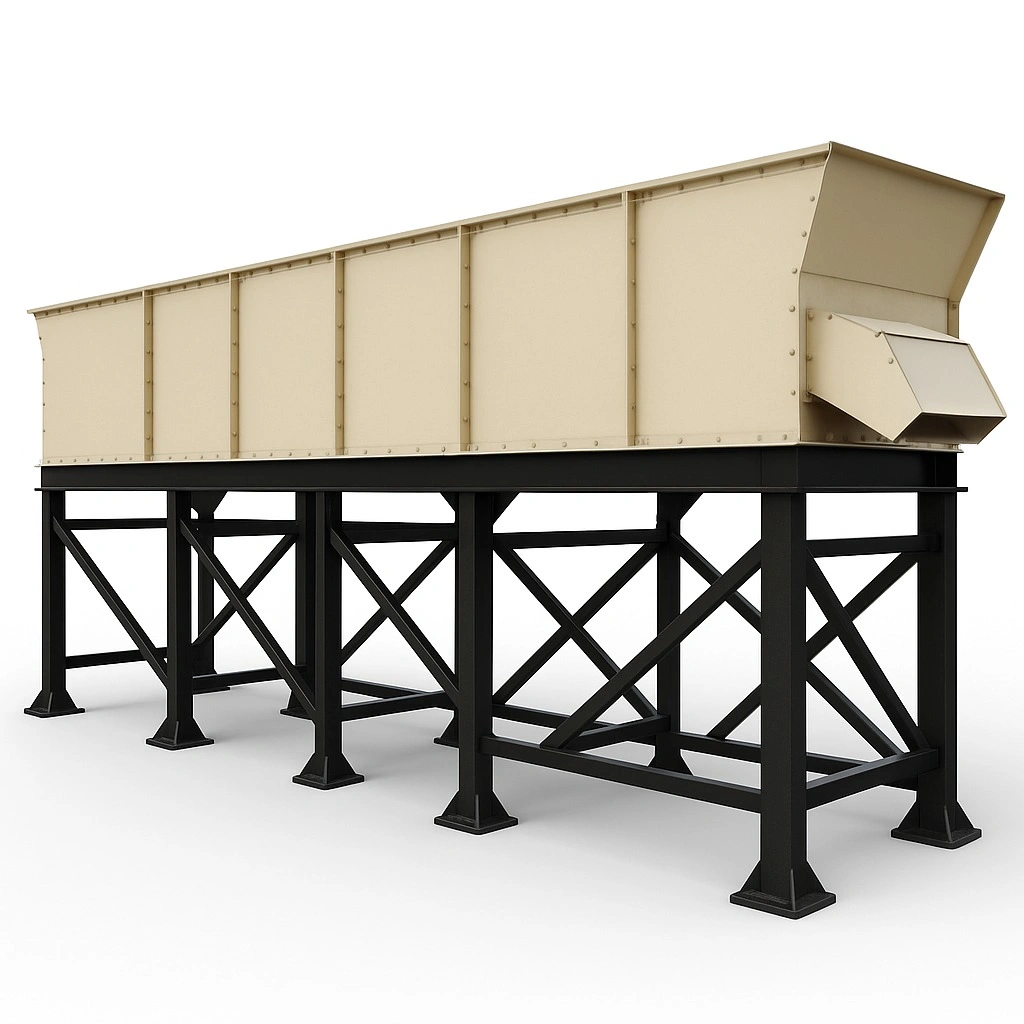

Automated material handling system that continuously feeds raw biomass into the processing line with controlled flow rate and uniform distribution.

• Types Available: Vibratory Feeder, Screw Feeder, Belt Feeder, Pneumatic Feeder
• Capacity: 500kg/hr, 1TPH, 2TPH, 5TPH
• Power: 2-15 kW
• Feed rate: Adjustable 0-100%
• Control: Manual, Semi-automatic, Fully automatic with PLC
• Features: Level sensor, Flow control, Emergency stop, Material flow monitoring

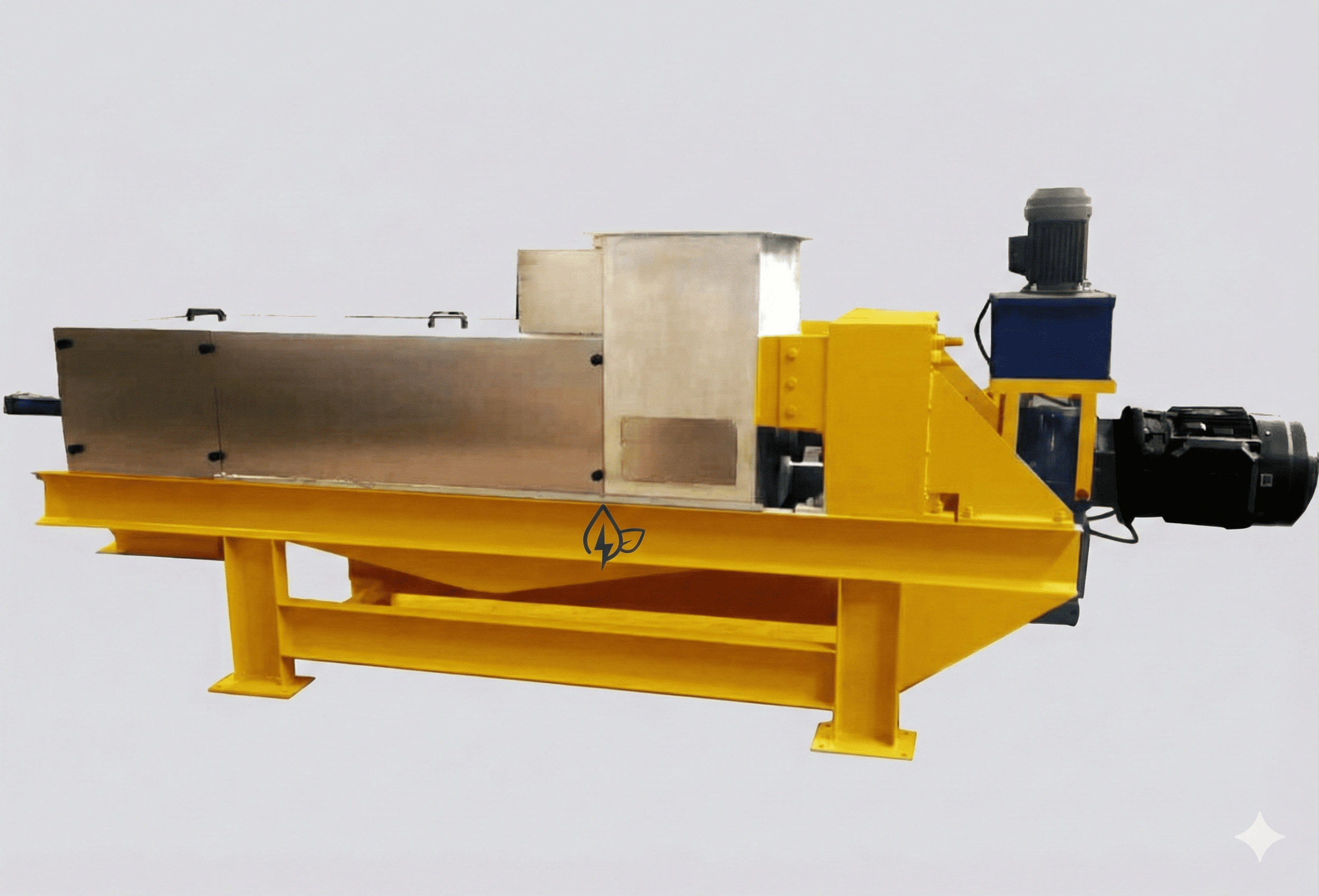

Removes excess water from wet biomass material before processing to reduce moisture content and improve efficiency.

• Types Available: Screw Press, Belt Press, Centrifuge, Filter Press
• Capacity: 1TPH, 2TPH, 5TPH, 10TPH
• Power: 10-50 kW
• Moisture reduction: 40-60% to 20-30%
• Features: Continuous operation, Automatic discharge, Adjustable pressure

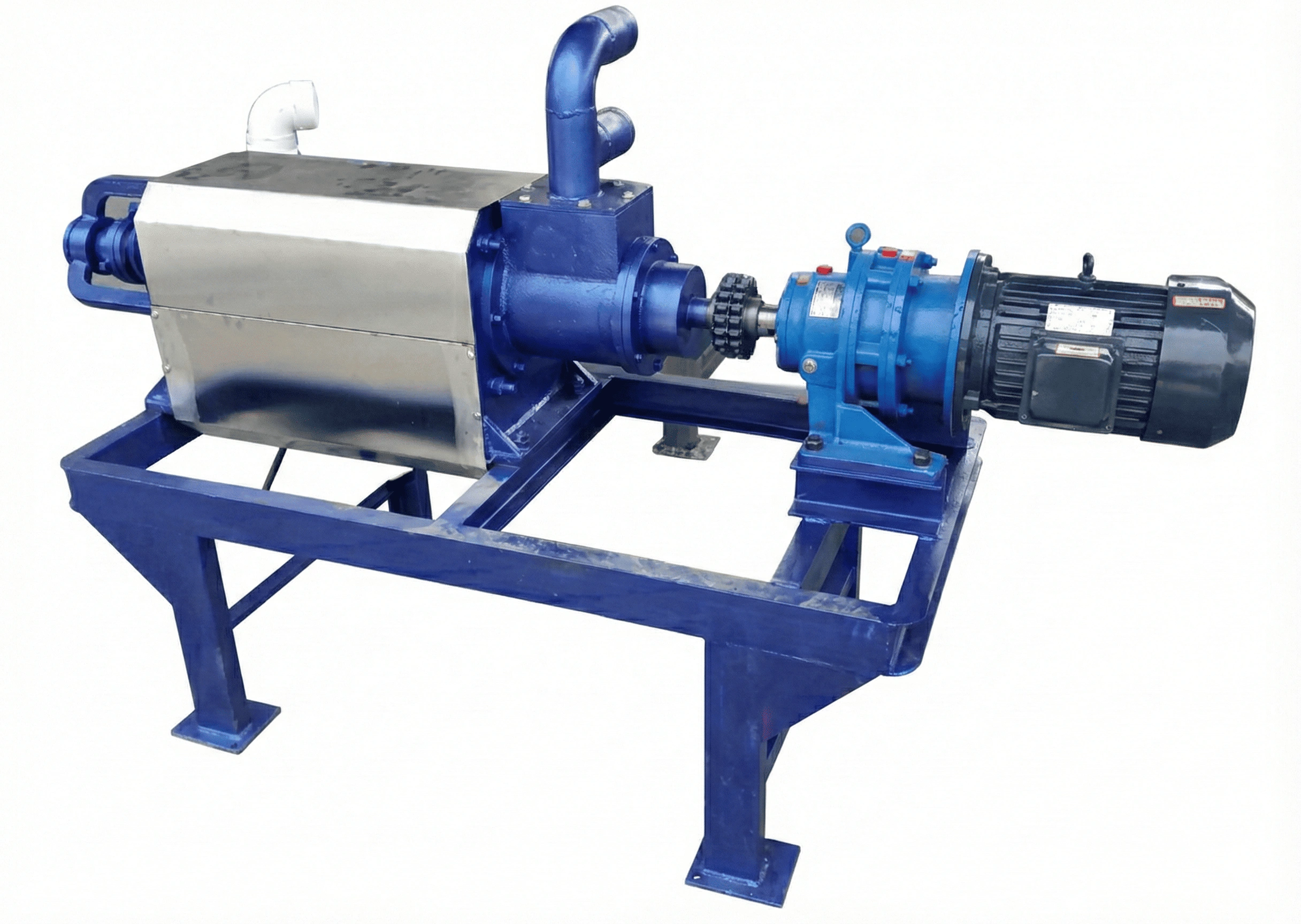

Separates solid biomass from liquid slurry to prepare material for pelletization process.

• Types Available: Screw Press Separator, Centrifugal Separator, Belt Filter Press
• Capacity: 1TPH, 2TPH, 5TPH
• Power: 5-30 kW
• Separation efficiency: 85-95%
• Solid content output: 20-40%
• Features: Continuous operation, Automatic discharge, Easy maintenance

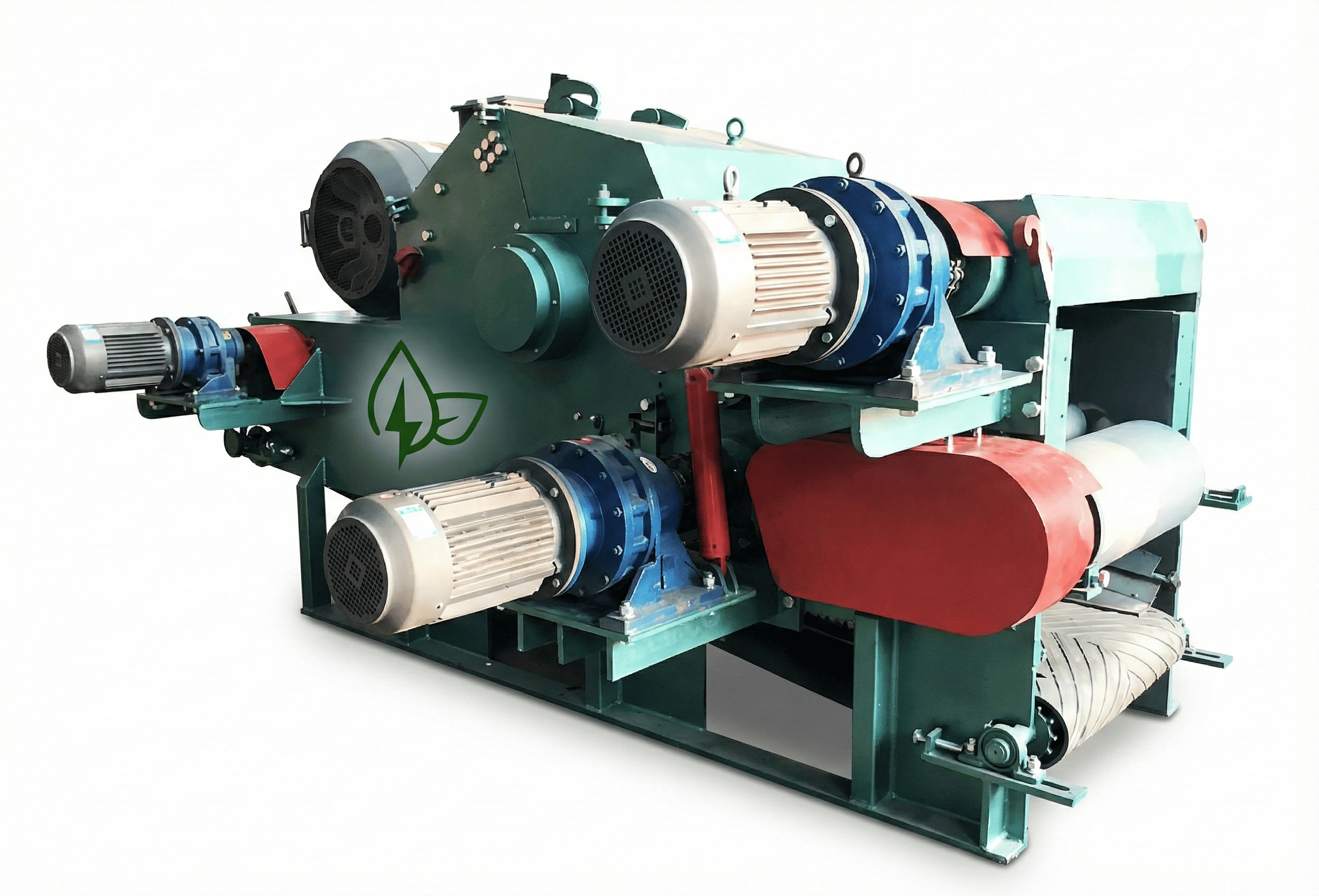

Cuts large wood pieces and biomass into smaller chips for easier processing and handling.

• Types Available: Disc Chipper, Drum Chipper, Knife Chipper
• Capacity: 500kg/hr, 1TPH, 2TPH, 5TPH
• Power: 15-75 kW
• Feed size: up to 300mm diameter
• Output size: 10-50mm chips
• Features: Adjustable chip size, Auto-feed system, Safety guards

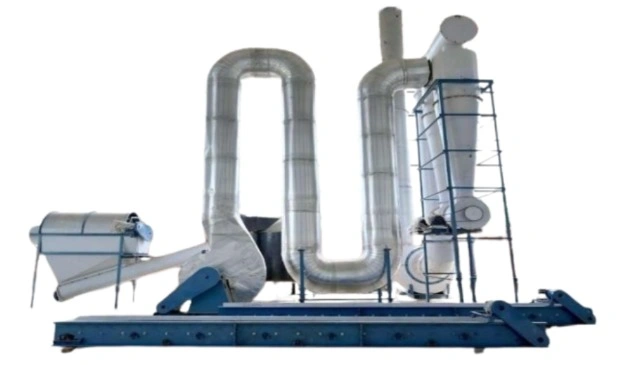

Reduces moisture content in raw biomass from 40-60% to optimal 10-15% for pelletization.

• Types Available: Rotary Drum, Flash, Belt, Fluidized Bed
• Capacity: 500kg/hr, 1TPH, 2TPH, 5TPH
• Power: 20-150 kW
• Moisture removal: 200-1000 kg/hr
• Inlet temp: 300-600°C | Outlet temp: 80-120°C
• Efficiency: 70-85%

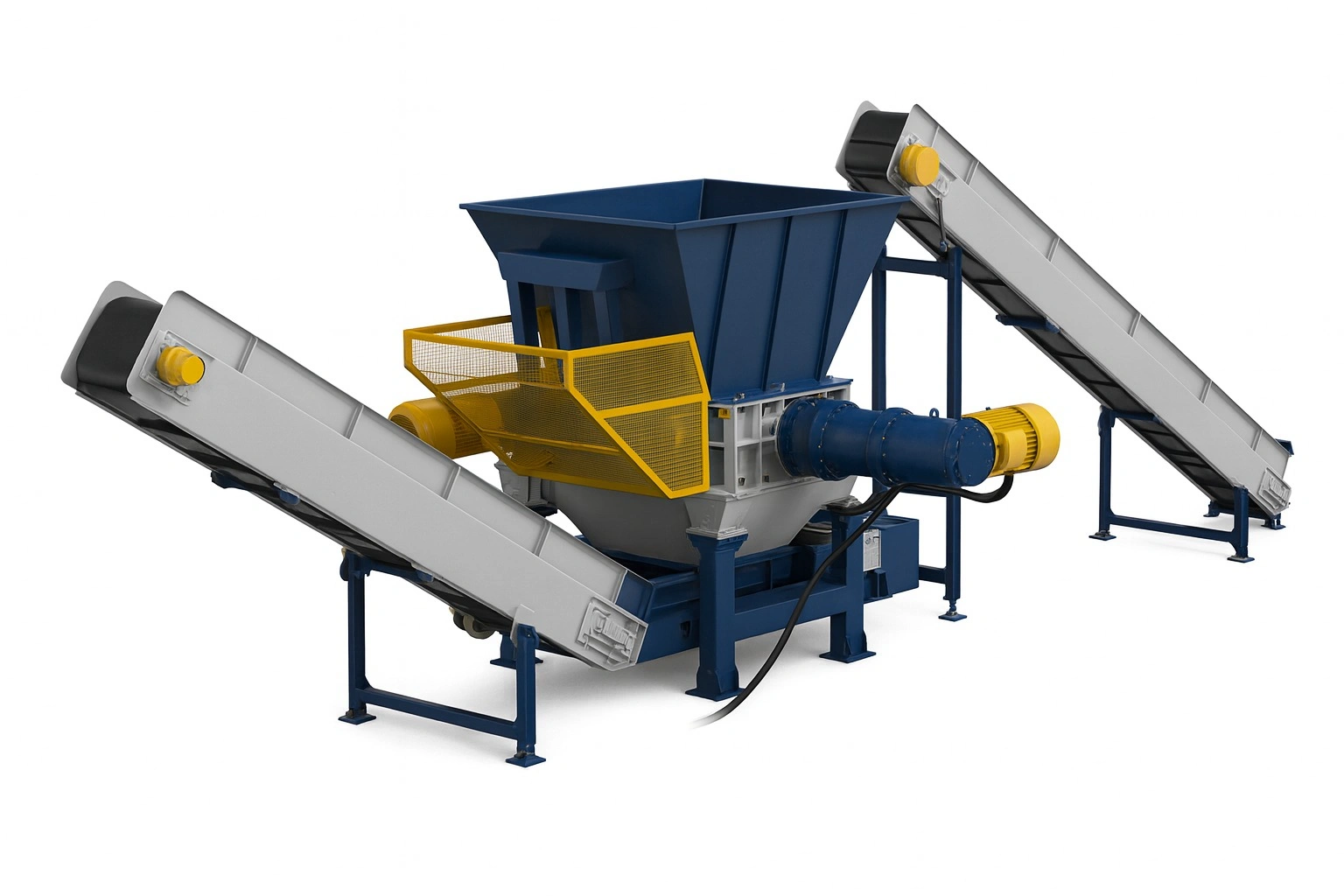

Initial size reduction of raw biomass material to prepare it for further processing and grinding.

• Types Available: Single Shaft, Double Shaft, Four Shaft, Industrial Shredder
• Capacity: 500kg/hr, 1TPH, 2TPH, 5TPH
• Power: 15-110 kW
• Feed size: up to 200mm
• Output size: 20-50mm
• Features: Adjustable screen size, Auto-reverse function

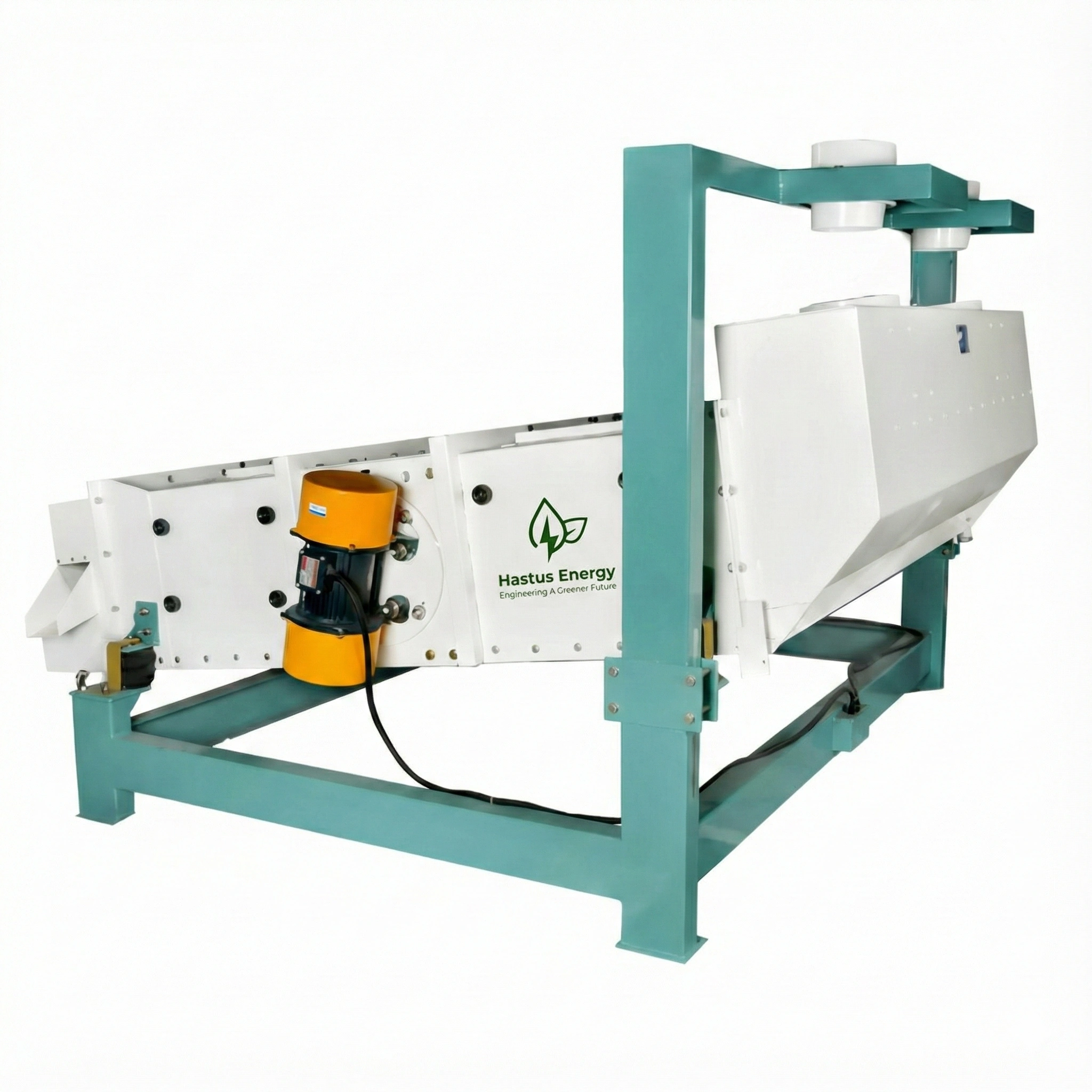

Screens and separates biomass material by size to ensure uniform particle distribution for pellet production.

• Types Available: Vibrating Sieve, Rotary Sieve, Trommel Screen
• Capacity: 1-10 TPH
• Power: 2-10 kW
• Screen sizes: 2mm, 4mm, 6mm, 8mm, 10mm
• Efficiency: >90%
• Features: Multi-deck screening, Easy screen replacement, Self-cleaning

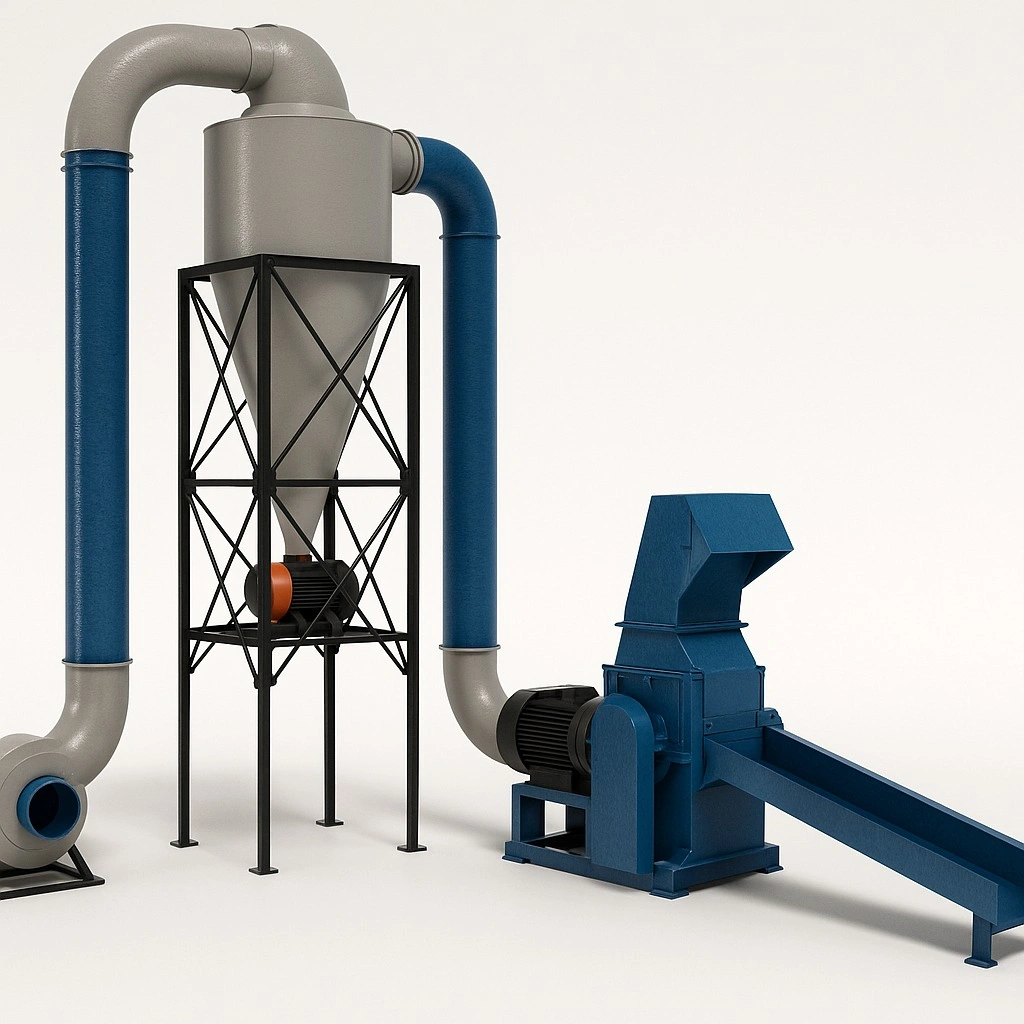

Reduces particle size of dried biomass to 3-5mm for uniform pellet quality.

• Types Available: Swing Hammermill, Fixed Hammermill, Pin Mill, Turbo Mill
• Capacity: 500kg/hr (15kW), 1TPH (37kW), 2TPH (75kW), 5TPH (150kW)
• Screen size: 3mm, 4mm, 5mm
• Feed size: up to 50mm
• Output: 80% <5mm

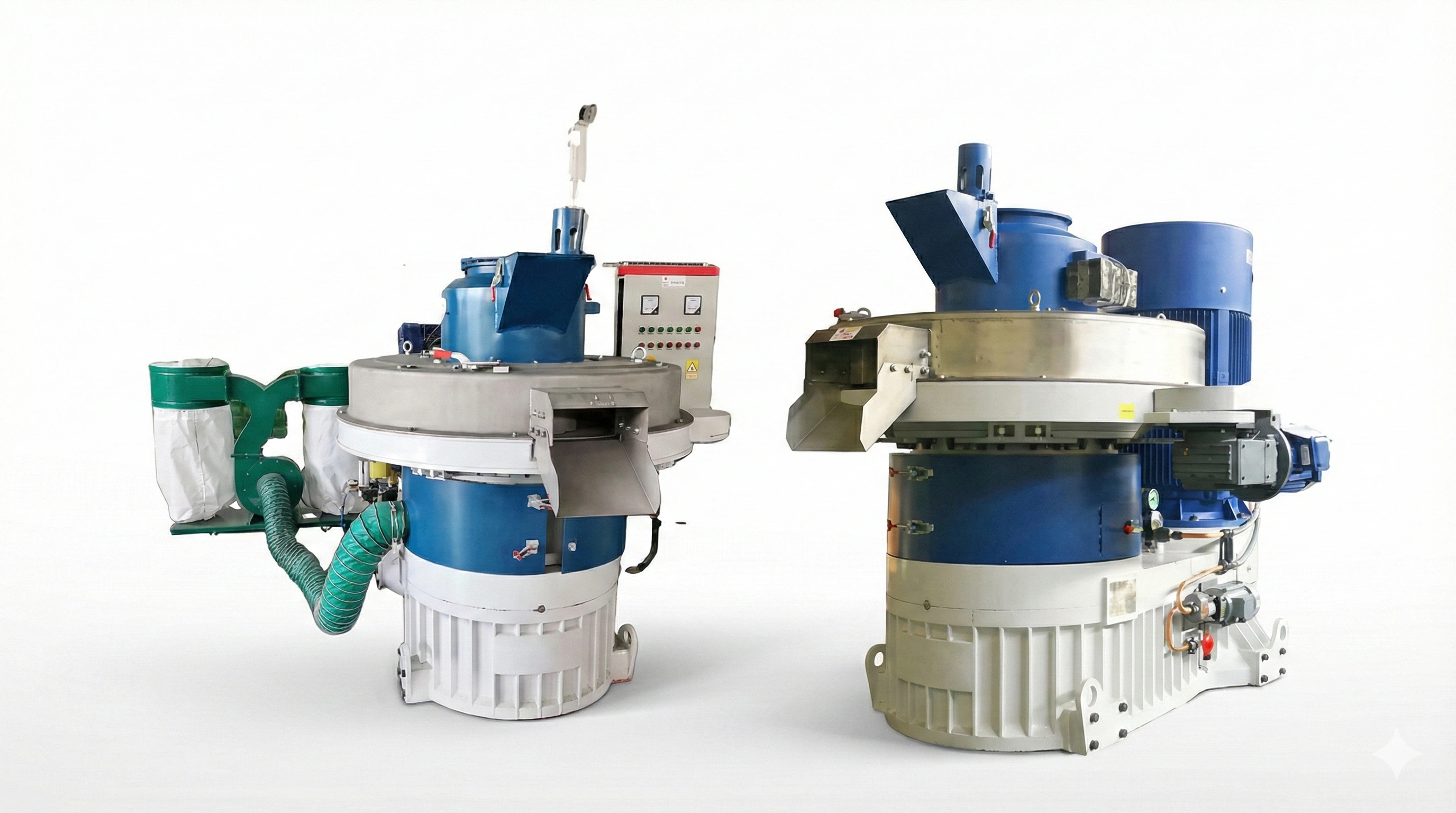

Core equipment that compresses ground biomass through die holes to form dense pellets.

• Types Available: Ring Die, Flat Die, Large Scale Industrial, Small Scale
• Ring Die: 1TPH (75kW), 2TPH (132kW), 3TPH (160kW), 5TPH (250kW)
• Flat Die: 100kg/hr (15kW), 300kg/hr (30kW)
• Die diameter: 300mm, 400mm, 500mm, 600mm
• Die hole: 6mm, 8mm, 10mm | Pressure: 100-200 bar

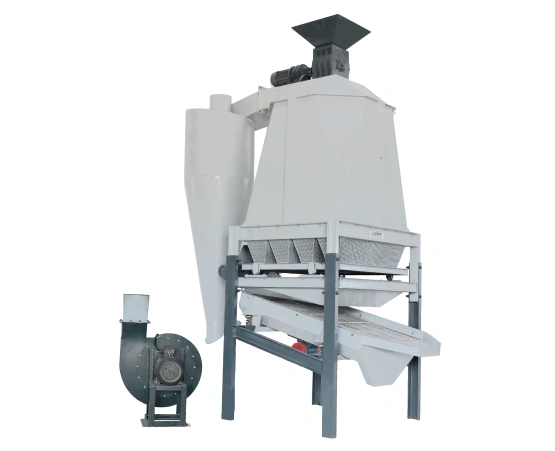

Cools hot pellets from 80-90°C to ambient temperature and reduces moisture for storage stability.

• Types Available: Counter Flow, Horizontal, Vertical, Fluidized Bed
• Capacity: 1TPH, 2TPH, 3TPH, 5TPH
• Cooling time: 10-20 minutes
• Air flow: 1000-5000 m³/hr
• Outlet temp: 25-35°C
• Moisture reduction: 1-3%

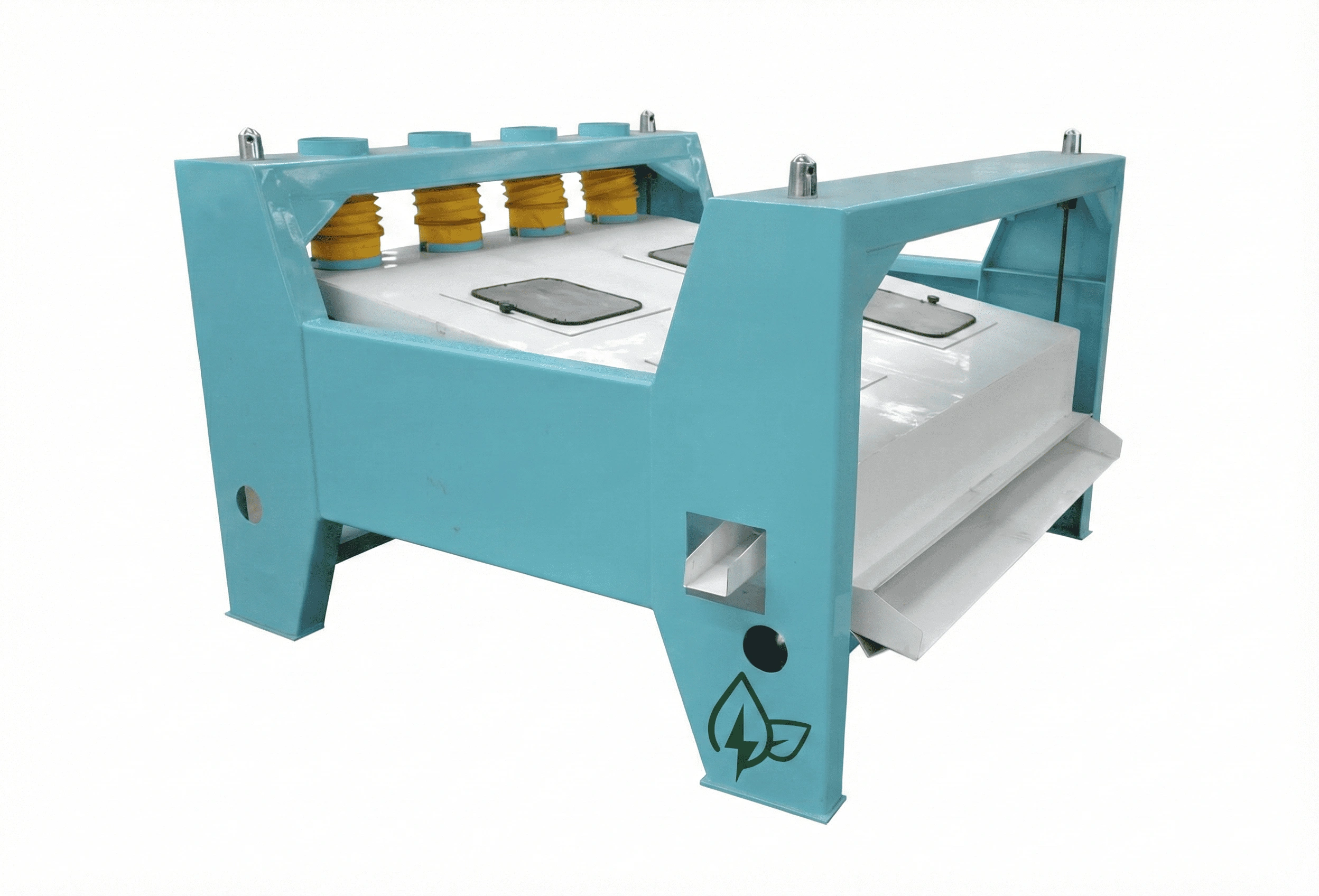

Separates fines and oversized pellets from finished product for quality control.

• Types Available: Rotary Sieve, Vibrating Screen, Drum Sieve, Two-deck Screen
• Capacity: 1-10 TPH
• Screen size: 4mm, 6mm, 8mm
• Efficiency: >95%
• Fines return: Auto recycling
• Motor: 1.5-5.5 kW

Screens and separates biomass material by size to ensure uniform particle distribution for pellet production.

• Types Available: Vibrating Sieve, Rotary Sieve, Trommel Screen
• Capacity: 1-10 TPH
• Power: 2-10 kW
• Screen sizes: 2mm, 4mm, 6mm, 8mm, 10mm
• Efficiency: >90%
• Features: Multi-deck screening, Easy screen replacement, Self-cleaning

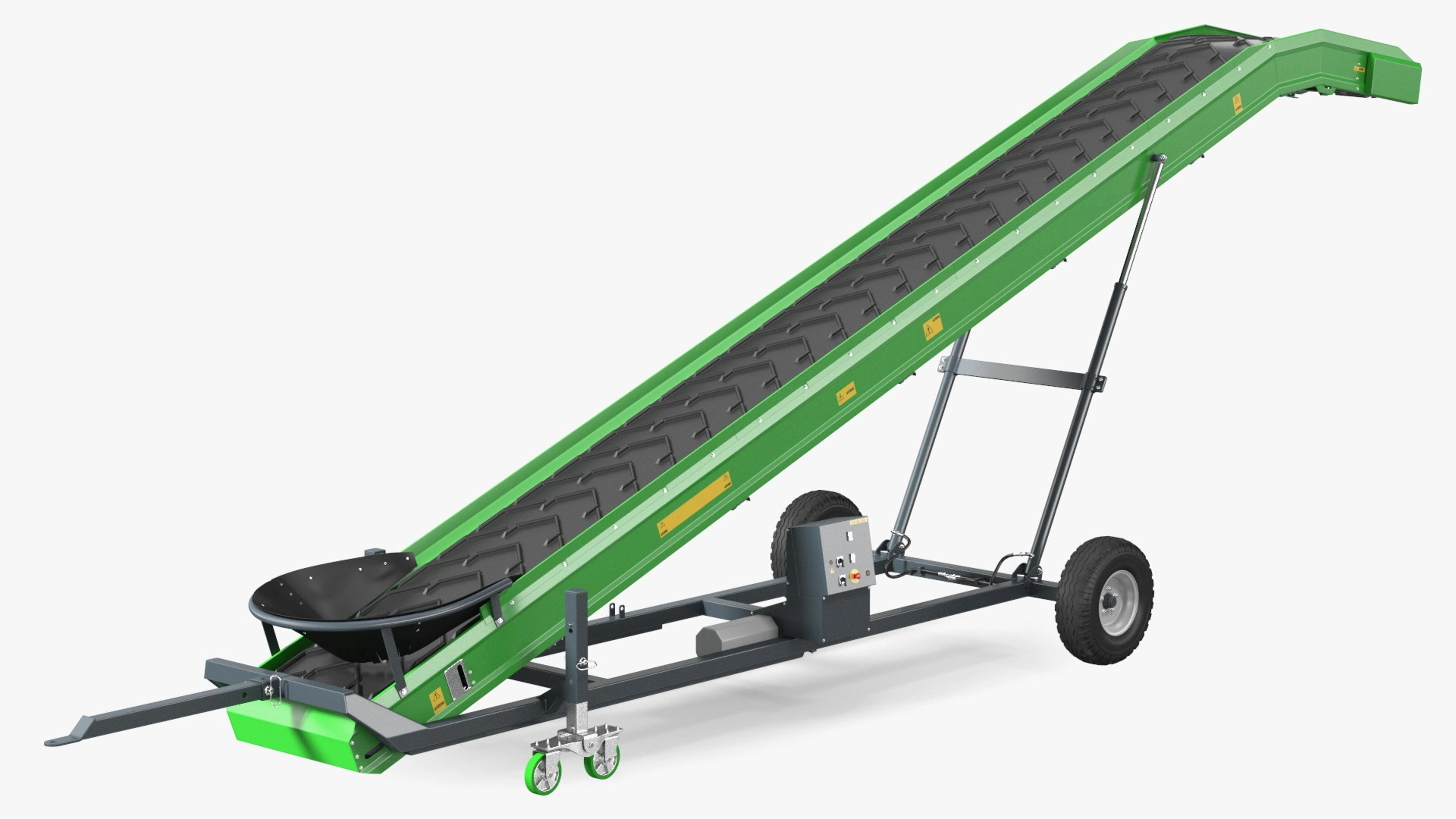

Transports biomass material between different processing stages.

• Types Available: Belt, Screw, Bucket Elevator, Pneumatic, Chain Conveyor
• Belt: 5-50 TPH, length 5-50m
• Screw: 1-10 TPH, length 3-20m
• Bucket: 5-30 TPH, height 5-30m
• Incline: 0-45°

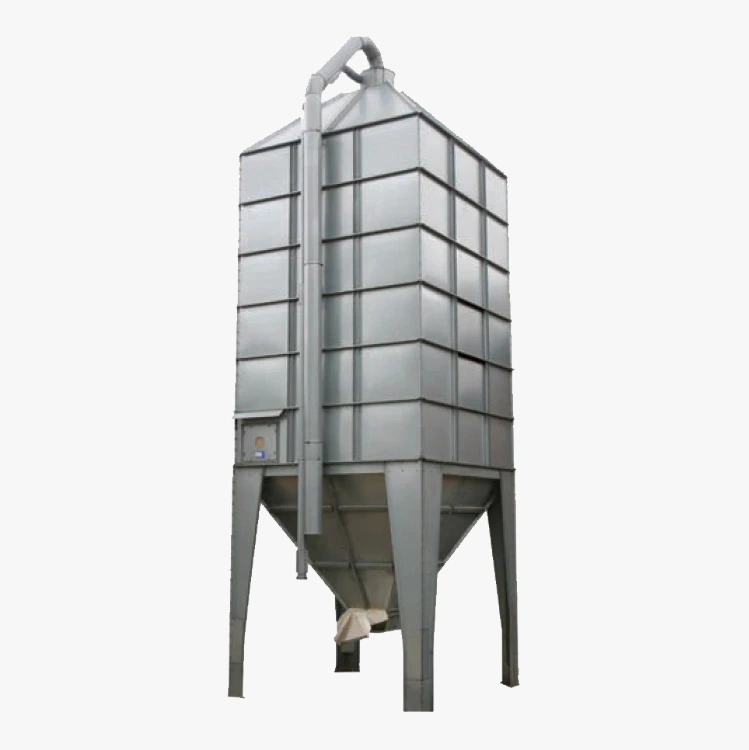

Stores raw material and finished pellets in controlled environment.

• Types Available: Hopper Bottom, Flat Bottom, Steel, Concrete
• Capacity: 10 ton, 25 ton, 50 ton, 100 ton, 500 ton
• Discharge: Pneumatic/Mechanical
• Features: Aeration system, Level indicator

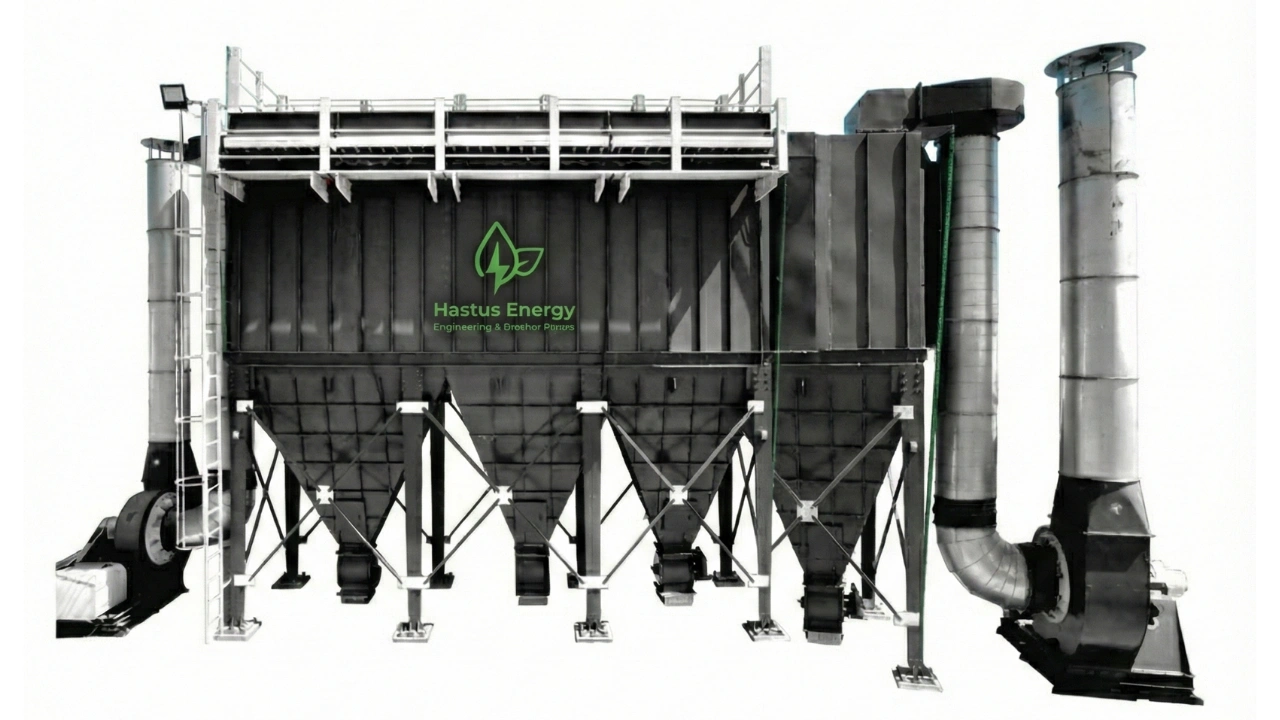

Captures airborne dust particles from grinding and processing to ensure clean environment.

• Types Available: Bag Filter/Bag House, Cyclone Separator, Wet Scrubber, Electrostatic Precipitator
• Air flow: 1000-10000 m³/hr
• Efficiency: 95-99.5%
• Power: 5-30 kW
• Filtration: <5mg/Nm³
• Features: Auto pulse cleaning

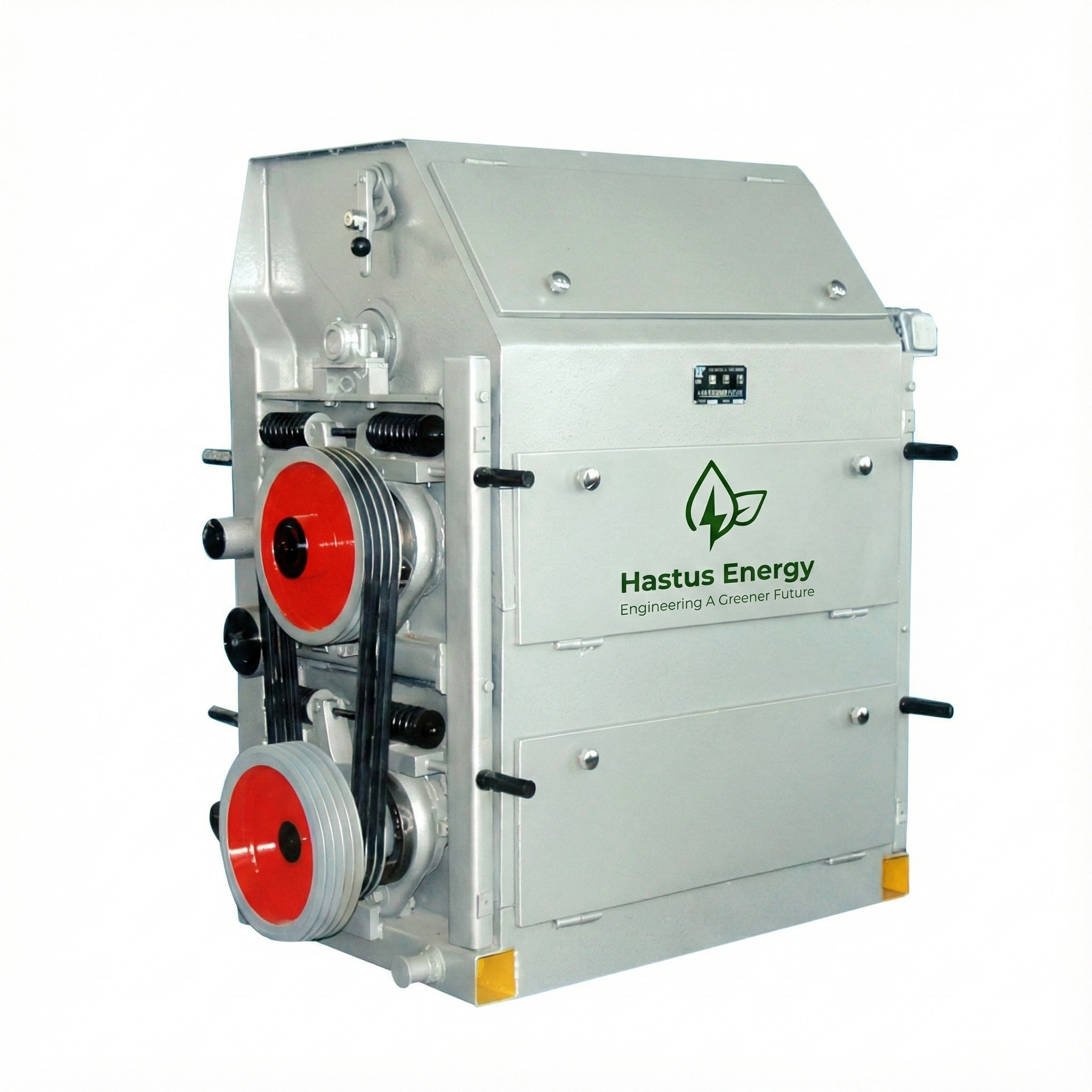

Recycles oversized or defective pellets back into the production process.

• Types Available: Roll Crusher, Rotary Crusher, Hammer Crusher
• Capacity: 500kg/hr - 2TPH
• Power: 5-15 kW
• Output size: 3-5mm

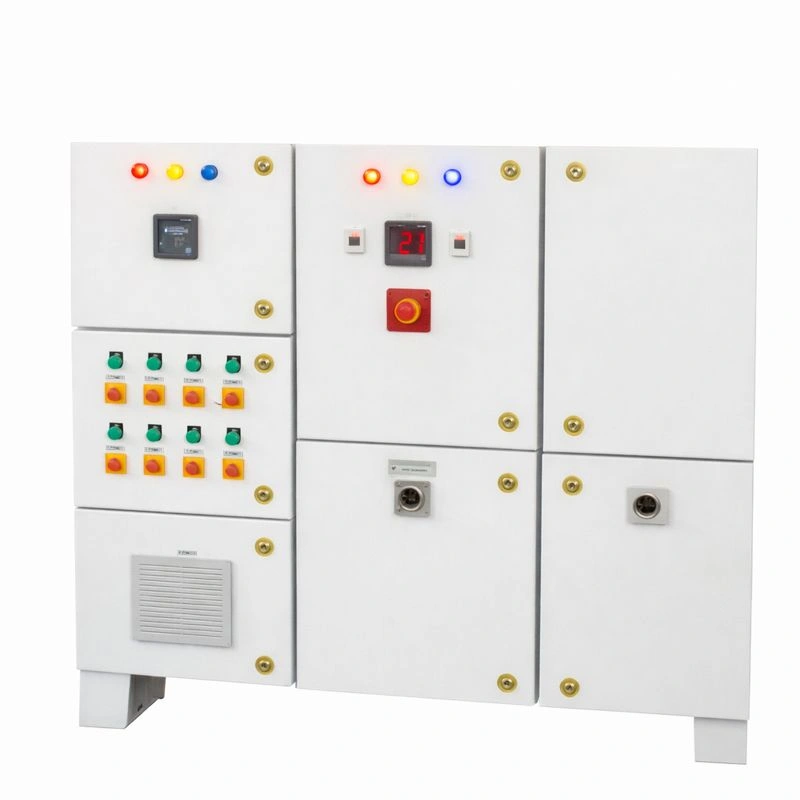

Centralized electrical control and automation of pellet production line.

• Types Available: Manual Control Panel, Semi-automatic PLC, Fully Automatic SCADA
• Components: Motor starters, VFD, PLC, HMI
• Features: Emergency stop, Temperature monitoring, Production monitoring, Remote control option

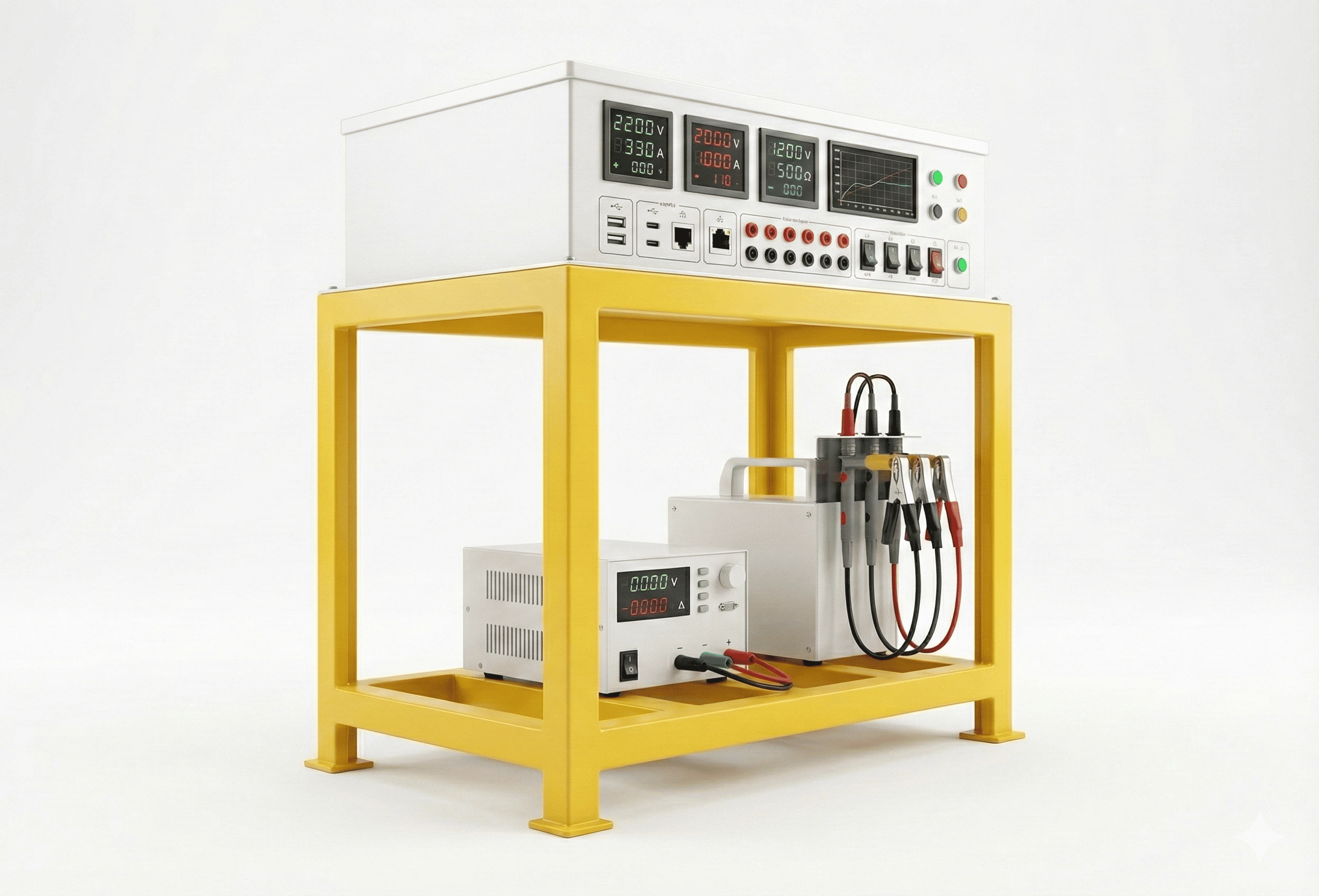

Power distribution and electrical control system for the entire pellet production plant.

• Components: Main Distribution Panel, Motor Control Centers, Transformers, Switchgear
• Power rating: 100kW - 500kW
• Voltage: 415V, 3-phase, 50Hz
• Protection: Overload, Short circuit, Earth fault protection
• Features: Power factor correction, Energy monitoring, Safety interlocks
